Tanım kodu
SKF K 81206 TN
Makaralı rulman K 81206 TN
- Marka
- SKF
- Ürün grubu
- Rulman ve Aksesuarları
- Ürün tipi
- Makaralı rulmanlar

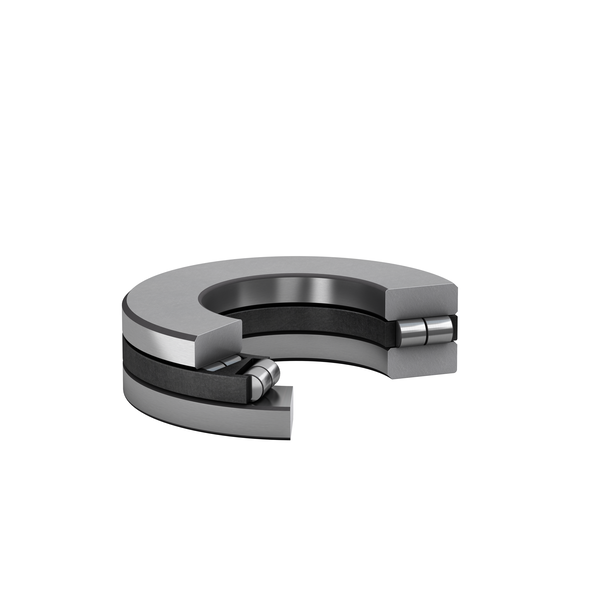

Cylindrical roller and cage thrust assemblies are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. Thrust assemblies can be used in applications where the adjacent components serve as raceways and enable bearing arrangements with a low axial section heights. Where the adjacent components cannot serve as raceways, they can be combined with one or two bearing washers to create complete bearings.
Faydalar
- High axial load carrying capacity
- High stiffness
- Long service life
- Require little axial space
- Can be combined with bearing washers
Teknik künye
| Ölçüler | |
|---|---|
| Bore Diameter (mm) | 30 |
| Outside Diameter (mm) | 52 |
| Özellikler | |
| Üretici kodu | K 81206 TN |
| Barkod (EAN) | 7316577030405 |
| Basic Dynamic Load Rating (kN) | 50 |
| Basic Static Load Rating (kN) | 134 |
| Reference Speed (r/min) | 2400 |
| Limiting Speed (r/min) | 4800 |
| Product Net Weight (kg) | 0,037 |
| Number of Rows | 1 |
| Cage | Non-metallic |
| Tolerance Class | Normal |
| Material, Bearing | Bearing steel |
| Coating | Without |
Bu kod için stok durumunu sorun.
Bu sayfada fiyat ve stok adedi yoktur. Tanım kodunu gönderin, durumu ve teslim süresini aynı gün dönelim; sipariş için B4B portalı ve online mağaza açık.
