Designation
SKF 33117

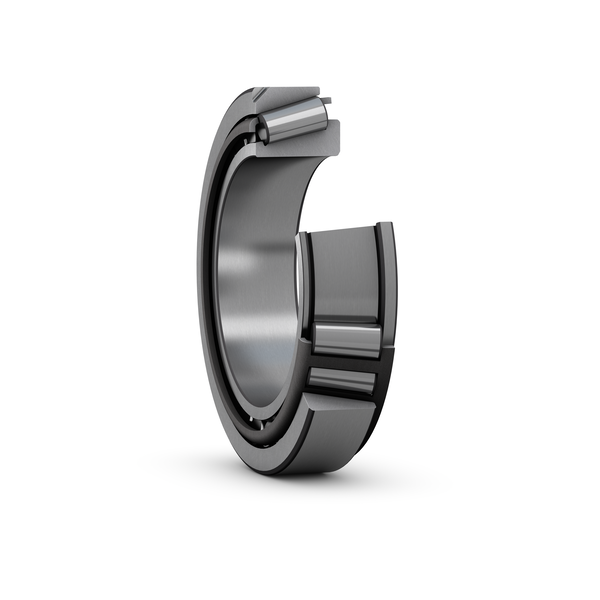

Roller bearing 33117
- Brand
- SKF
- Product group
- Bearings & Accessories
- Product type
- Roller bearings
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Benefits
- High radial and axial load carrying capacity
- Accommodate axial loads in one direction
- Low friction and long service life
- Separable and interchangeable components
Technical data
| Dimensions | |
|---|---|
| Bore Diameter (mm) | 85 |
| Outside Diameter (mm) | 140 |
| Features | |
| Manufacturer code | 33117 |
| Barcode (EAN) | 7316577006387 |
| Basic Dynamic Load Rating (kN) | 268 |
| Basic Static Load Rating (kN) | 340 |
| Reference Speed (r/min) | 3600 |
| Limiting Speed (r/min) | 4500 |
| Product Net Weight (kg) | 2.43 |
| Number of Rows | 1 |
| Sealing | Without |
| Cage | Sheet metal |
| Bore Type | Cylindrical |
| Locating Feature, Bearing Outer Ring | None |
| Relubrication Feature | Without |
| Coating | Without |
