Designation
SKF 609

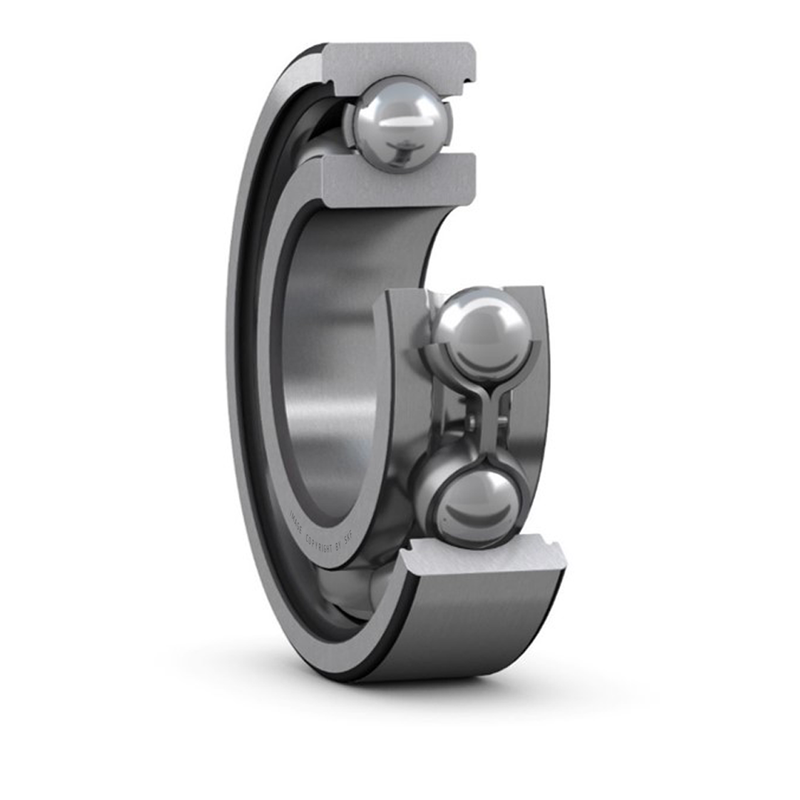

Ball bearing 609
- Brand
- SKF
- Product group
- Bearings & Accessories
- Product type
- Ball bearings
Benefits
- Simple, versatile and robust design
- Low friction
- High-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
Technical data
| Dimensions | |
|---|---|
| Bore Diameter (mm) | 9 |
| Outside Diameter (mm) | 24 |
| Width (mm) | 7 |
| Features | |
| Manufacturer code | 609 |
| Barcode (EAN) | 7316577111784 |
| Basic Dynamic Load Rating (kN) | 3.9 |
| Basic Static Load Rating (kN) | 1.66 |
| Reference Speed (r/min) | 70000 |
| Limiting Speed (r/min) | 43000 |
| Product Net Weight (kg) | 0.0136 |
| Number of Rows | 1 |
| Sealing | Without |
| Cage | Sheet metal |
| Bore Type | Cylindrical |
| Radial Internal Clearance | CN |
| Tolerance Class | Class P6 (P6) |
| Locating Feature, Bearing Outer Ring | None |
| Relubrication Feature | Without |
| Material, Bearing | Bearing steel |
| Coating | Without |
